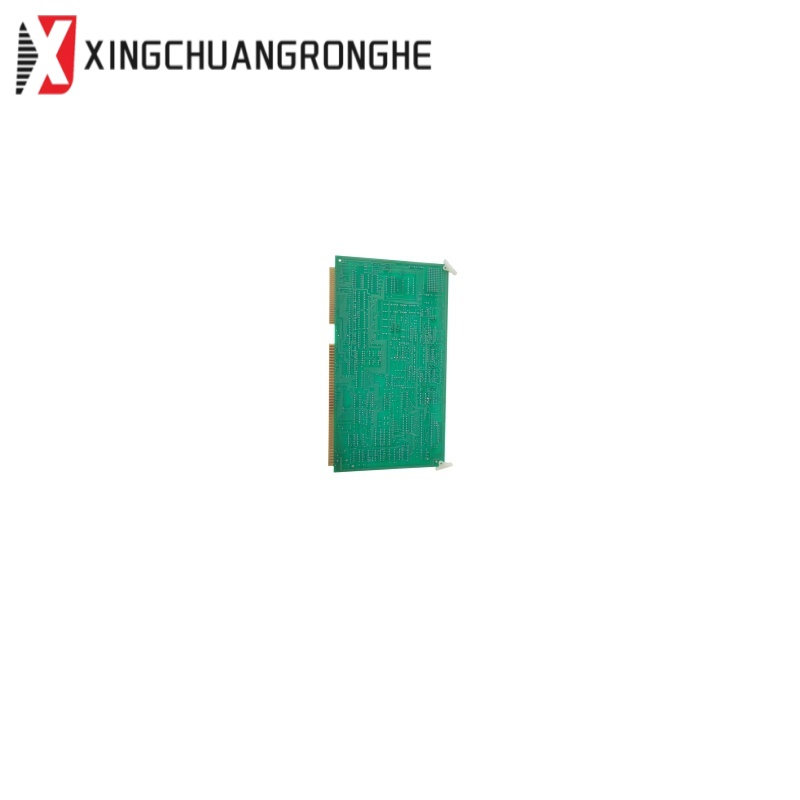

ABB 802A028D-3 Industrial IO Assembly Board

ABB 802A028D-3 Industrial IO Assembly Board is a printed circuit board assembly (PCBA) used for Chroma I/O in the ABB PGC2000 process gas chromatograph system, handling the exchange of chromatograph process signals within the analyzer. The board is part of the 802A028D board family built around an 80C86 processor, which supports data acquisition and interface functions for analyzer monitoring and control applications. As a spare part for the PGC2000 platform, this board is typically replaced rather than repaired in the field.
Product Datasheet

1. Brand: ABB
2. Model: 802A028D-3
3. Product Name: ChromoLoop IO Board (Chroma I/O Board)
4. Type: PCBA (printed circuit board assembly)
5. System: ABB PGC2000 process gas chromatograph
6. Processor: 80C86 based

1. The board does not communicate with the analyzer system. Check the board's seating in its slot, backplane and ribbon cable connections, system power, and the analyzer's diagnostic display. Confirm that the board revision matches the PGC2000 configuration and that the correct firmware is installed.
2. Chromatograph readings are inaccurate or unstable. Inspect the board connectors, grounding, and cabling to the analyzer modules. Verify that the signal paths and channel settings match the configured application before suspecting the board.
3. Outputs or interface signals do not respond correctly. Check the output and interface configuration, analyzer commands, and connected equipment. Follow approved maintenance procedures before testing output circuits.
4. Can the 802A028D-3 replace another Chroma I/O board? Not without verification. Compare the full part number and revision, board layout, connector configuration, processor, and compatibility with the specific PGC2000 system version before replacement.

1. Isolate power and follow lockout/tagout procedures before removing or installing the board.
2. Use electrostatic discharge protection when handling electronic assemblies.
3. Verify connector orientation and wiring before energizing the system.
4. Do not connect signals until the electrical ratings have been confirmed.
5. Use qualified personnel for troubleshooting and maintenance in operating analyzer systems.
