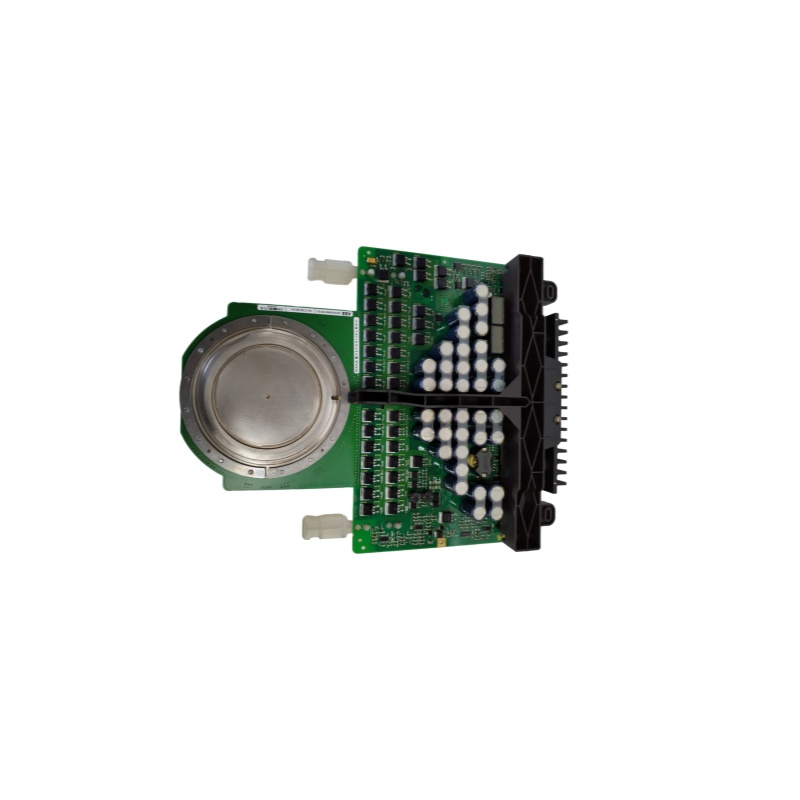

ABB GVC750BE01 Gate Control Unit for High Power Drives ABB

The ABB GVC750BE01 Gate Control Unit for High Power Drives ABB is a high-performance power semiconductor module engineered for high-power drive and power conversion systems. Integrating IGBT/IGCT switching technology in a rugged press-pack package, it handles high voltage and high current with fast, low-loss switching, ensuring reliable power conversion for industrial automation equipment under demanding site conditions.

Key Specifications:

• Brand: ABB
• Model: GVC750BE01
• Type: High Power IGBT/IGCT Semiconductor Module
• Rated Voltage: 4500 V (repetitive peak off-state), 2800 V permanent DC link
• Rated Current: 2645 A
• Switching Technology: Fast, snubberless turn-off IGCT
• Cooling Method: Press-pack double-sided cooling, water-cooled
• Control Interface: Optical fiber control interface with status feedback
• Protection Features: High electromagnetic immunity, fault status monitoring
• Operating Temperature: -20°C to +60°C
• Humidity Range: 5% to 95% non-condensing
• Certifications: CE, RoHS, UL

ABB GVC750BE01 Gate Control Unit for High Power Drives ABB is a durable power semiconductor module built for high-integrity industrial power systems. Positioned at the heart of the converter power stage, it converts control signals into fast, precise switching actions that minimize conduction and switching losses, keeping conversion efficiency high under demanding load conditions. The press-pack design with double-sided water cooling delivers superior thermal performance, enabling dependable operation in confined, high-temperature environments without compromising reliability. Integrated status feedback and fault monitoring support early detection of abnormal conditions, reducing unplanned downtime and maintenance costs. The ABB GVC750BE01 conforms to rigorous industrial standards, making it a trusted building block for high-voltage, high-current power conversion applications.
