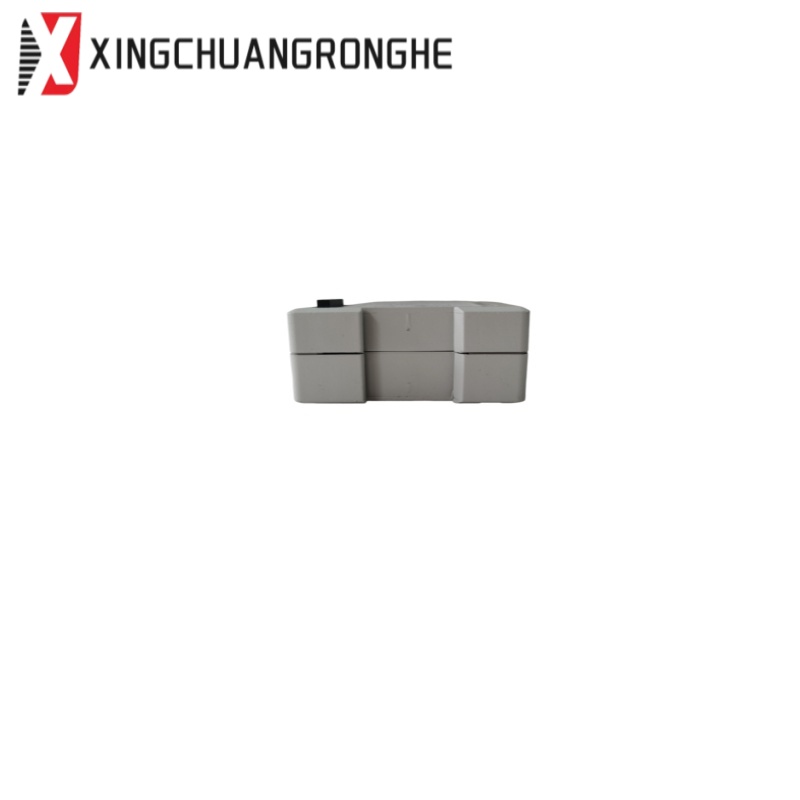

ABB 520PSD01 IO Assembly Power Supply

ABB 520PSD01 IO Assembly Power Supply is a DIN rail mounted power supply unit in the ABB RTU500 series (RTU520 product line), designed to generate and switch the 5V DC, ±15V DC, and 24V DC voltages required by the RTU520 remote terminal unit system. Operating from a 24V DC input with a total output power of 20 W, the unit supplies RTU520 racks with up to 16 I/O modules and provides short-circuit proof outputs, electronic power limitation, and LED monitoring for each output voltage. It is a common spare part for ABB substation automation and power distribution installations.

1. Brand: ABB
2. Model: 520PSD01
3. Product Name: Power Supply Unit
4. Series: RTU500 (RTU520 product line)
5. Input Voltage: 24V DC (-20% / +20%)
6. Max Input Current: 1 A @ 24V DC
7. Outputs: 5 VDC (max 1.8 A), ±15 VDC (max 0.2 A), 24 VDC (max 0.2 A)
8. Total Output Power: 20 W
9. Dimensions: 35 × 98 × 117 mm (W × H × D)
10. Weight: 0.14 kg
11. Mounting: DIN rail (EN 50022 TS35)
12. Protection: Short-circuit proof outputs, reverse voltage protection, electronic power limitation
13. Operating Temperature: -25 to +70 °C

1. The unit produces no output voltages. Check the 24V DC input supply, input wiring, and the status LEDs on the front panel. Verify the input voltage is within the -20% to +20% tolerance range and that the unit is mounted and connected correctly.
2. One or more output voltages are missing or out of range. Check the corresponding output LED (5V, +15V, -15V, or 24V) and the connected load. Verify there is no short circuit and that the total load does not exceed the output current ratings or the 20 W total output power.
3. RTU520 I/O modules are not powered. Confirm the power supply is operating and that the 24V output pass-through via the 520CMD01 to the I/O modules is functioning. Check the rack bus connection and module seating.
4. Can the 520PSD01 replace another RTU500 power supply unit? Not without verification. Compare the full part number and revision, input voltage range, output voltages and currents, connector layout, and compatibility with the specific RTU500 rack configuration.

1. Isolate power and follow lockout/tagout procedures before removing or installing the unit.
2. Use electrostatic discharge protection when handling electronic assemblies.
3. Verify the input supply voltage and output wiring before energizing the unit.
4. Do not connect loads until the electrical ratings have been confirmed.
5. Use qualified personnel for troubleshooting and commissioning in operating substation systems.
