Original ABB XXD129A01 PEC800-BP Board Spare

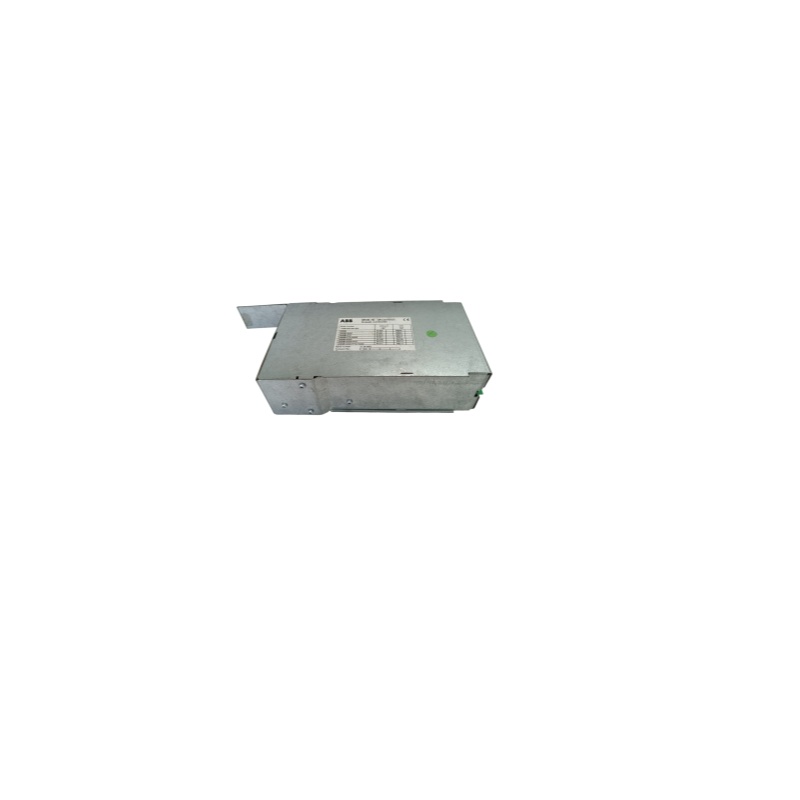

The Original ABB XXD129A01 PEC800-BP Board Spare is the redundant power supply module (PEC800-BP, order code 3BHE012436R0001) of the ABB AC 800PEC / PEC800 control platform, providing redundant 24 V DC power for AC 800PEC controllers and related power-electronics control systems. It accepts a wide AC/DC input range and delivers a regulated 24 V DC output to power the PEC800 controller assembly.

Key Features

1. Redundant power supply module for the ABB AC 800PEC (PEC800) control platform
2. PEC800-BP designation; order code 3BHE012436R0001
3. Wide input range: 85–264 V AC / 120–370 V DC
4. Regulated 24 V DC ±1% output
5. Rated 800 W class
6. Supports redundant supply configurations for high-availability control systems
7. Used in AC 800PEC, Symphony Harmony DCS and high-power rectifier control applications

1. Type Designation: XXD129A01 (PEC800-BP)
2. Order Code: 3BHE012436R0001
3. Product Type: Redundant power supply module
4. System: ABB AC 800PEC / PEC800 control platform
5. Input Voltage: 85–264 V AC / 120–370 V DC
6. Output Voltage: 24 V DC ±1%
7. Output Power: 800 W class
8. Function: Redundant DC power for PEC800 controller assembly
9. Mounting: PEC800 rack/backplane
10. Origin: Switzerland

1. Verify the module's order code (3BHE012436R0001) and revision against the system spare-parts list before installation.
2. De-energize the PEC800 cabinet and confirm DC-link discharge before handling; use ESD precautions.
3. Install the module in its designated PEC800 power slot; seat connectors fully.
4. Verify input voltage within range (85–264 V AC / 120–370 V DC) and output 24 V DC ±1% at the backplane.
5. Confirm redundancy behavior — simulate a single-supply failure during commissioning and verify automatic switchover without interrupting the load.

1. What is the XXD129A01 used for? It is the redundant power supply module (PEC800-BP, 3BHE012436R0001) of the ABB AC 800PEC control platform, providing 24 V DC power with redundancy for high availability.
2. What power does it provide? 24 V DC ±1% output, 800 W class, from a wide input of 85–264 V AC / 120–370 V DC.
