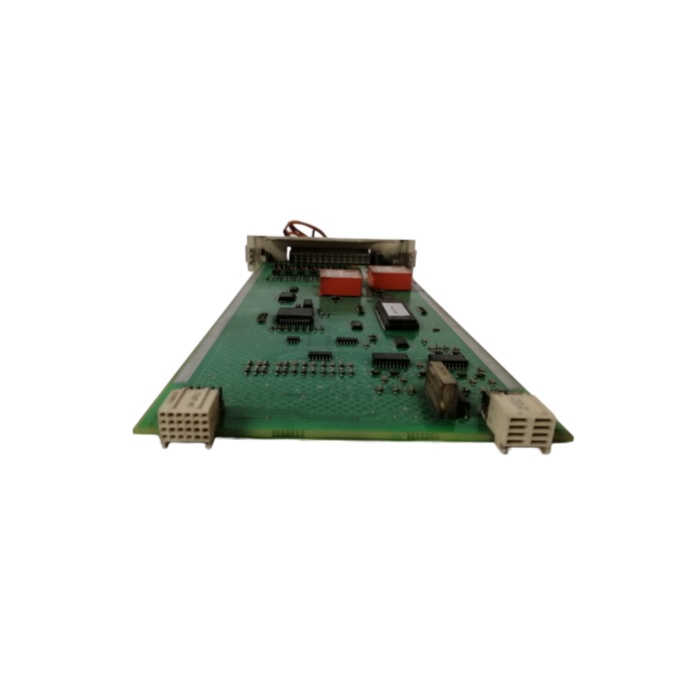

ABB TC520 Thermocouple Module for Manufacturing Automation ABB

The ABB TC520 Thermocouple Module for Manufacturing Automation ABB is a high-performance temperature measurement module designed for industrial automation and distributed control systems. It acquires temperature signals from thermocouple and RTD sensors with reliable accuracy, delivering stable, consistent measurement data to the control system under tough site conditions to guarantee dependable process monitoring.

Key Specifications:

• Brand: ABB
• Model: TC520
• Type: Thermocouple Input Module / Temperature Sensor Interface
• Sensor Inputs: Thermocouples J, K, T, E, R, S, B; RTD (Pt100, Ni1000, Cu50); mV DC
• Input Channels: 4 analog sensor input channels
• Output Channels: 2 analog output channels
• Signal Processing: Cold junction compensation and linearization
• Supply Voltage: 24 V DC
• Communication Interface: Standard industrial I/O bus (backplane connection)
• Protection Features: Sensor fault detection, galvanic isolation
• Operating Temperature: -20°C to +60°C
• Humidity Range: 5% to 95% non-condensing
• Certifications: CE, RoHS, UL

ABB TC520 Thermocouple Module for Manufacturing Automation ABB is a reliable temperature acquisition module built for accurate process monitoring in industrial control systems. It serves as a key sensing element within automation setups, connecting thermocouple and RTD sensors to the control system for seamless integration and steady performance in demanding industrial surroundings. With multi-type sensor support, cold junction compensation and linearization, this module delivers precise temperature readings that support stable process control and improve overall system reliability. Its rugged construction extends service life and lowers maintenance downtime. The ABB TC520 complies with strict industrial standards, making it a preferred temperature input option for industrial automation applications.
