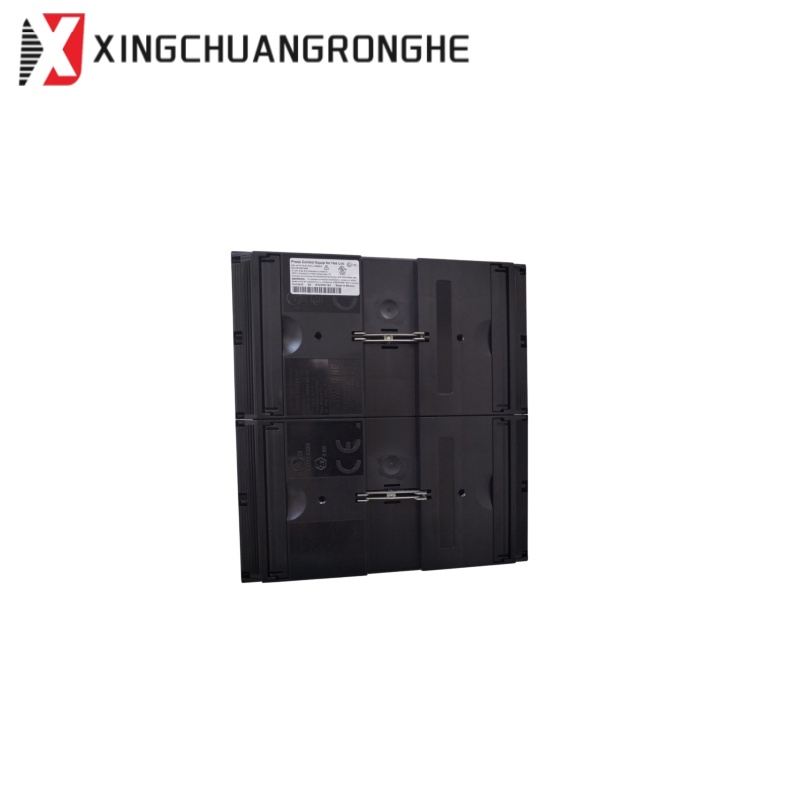

RH926JF 4 Position FBM FCM Mounting Backplane
RH926JF 4 Position FBM FCM Mounting Backplane is a mounting baseplate in the Foxboro I/A Series 200 Series baseplate family, providing mechanical support and fieldbus connection for Fieldbus Modules (FBMs) in process automation cabinets. The baseplate accommodates 4 FBM module positions and supports the standard FBM200 series modules as well as 100 Series FBMs, enabling unitized installation of I/O modules with vertical or horizontal orientation. It is a structural spare part used when replacing or expanding DCS I/O racks.
Product Datasheet
- Brand: Foxboro
- Model: RH926JF
- Product Name: Modular Baseplate
- Series: 200 Series (I/A Series / Foxboro Evo)
- Capacity: 4 FBM module positions
- Compatible Modules: FBM200 series and 100 Series FBMs
- Mounting: Vertical or horizontal (per 200 Series family)
- Application: Mounting and fieldbus connection of FBMs in DCS cabinets
Fault Troubleshooting and Common Questions
- An FBM does not seat or communicate after installation. Check the baseplate mounting, module seating, and fieldbus connectors. Verify the module is fully inserted and that the baseplate is correctly wired to the fieldbus network.
- Connections are loose or intermittent. Inspect the mounting screws, DIN rail fixing, and connector terminations on the baseplate. Confirm the baseplate is securely mounted and that all FBM latches are engaged.
- The baseplate shows mechanical damage or poor contact. Inspect the baseplate for bent pins, cracked connectors, or corrosion. Replace the baseplate if contacts are damaged, and verify the new unit matches the original layout.
- Can the RH926JF replace another Foxboro modular baseplate? Not without verification. Compare the full part number, FBM position count, mounting orientation, connector layout, and compatibility with the specific I/A Series configuration before replacement.
Safety Precautions
- Isolate power and follow lockout/tagout procedures before removing or installing the baseplate.
- Use electrostatic discharge protection when handling electronic assemblies.
- Verify fieldbus and power wiring before energizing the system.
- Do not connect modules until mounting and electrical ratings have been confirmed.
- Use qualified personnel for troubleshooting and maintenance in operating DCS systems.
Frequently Asked Questions
Q1: What is the Foxboro RH926JF? It is a 200 Series modular baseplate in the Foxboro I/A Series, providing mounting and fieldbus connection for Fieldbus Modules in DCS cabinets.
Q2: How many FBM positions does the baseplate have? The RH926JF baseplate accommodates 4 FBM module positions.
Q3: Which modules can be mounted on it? It supports the standard FBM200 series modules and 100 Series FBMs.
Q4: What should be checked before purchase? Verify the model label, full part number, FBM position count, mounting orientation, and compatibility with the specific I/A Series rack and modules.
