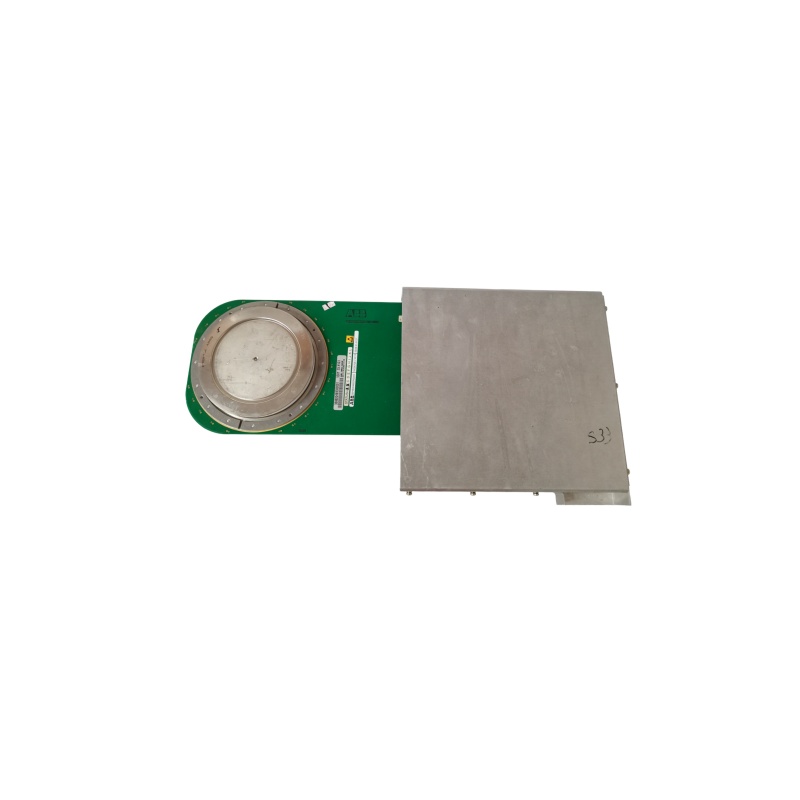

ABB 5SHY35L4503 Thyristor ABB High Power Semiconductor Industrial

The ABB 5SHY35L4503 Thyristor ABB High Power Semiconductor Industrial is a high-performance power semiconductor module engineered for high-power drive and power conversion systems. Combining the high-voltage blocking capability of thyristors with the fast switching speed of transistors, it handles high voltage and high current with low-loss, snubberless switching, ensuring reliable power conversion for industrial automation equipment under demanding site conditions.

Key Specifications:

• Brand: ABB
• Model: 5SHY35L4503
• Type: High Power IGCT (Integrated Gate-Commutated Thyristor) Module
• Rated Voltage: 4500 V (repetitive peak off-state)
• Rated Current: 3500 A
• Switching Technology: Fast gate-commutated turn-off, snubberless operation
• Cooling Method: Press-pack double-sided cooling, water-cooled
• Control Interface: Optical fiber control interface with status feedback
• Features: High snubberless turn-off rating, high power density, fail-to-short mode
• Operating Temperature: -20°C to +60°C
• Humidity Range: 5% to 95% non-condensing
• Certifications: CE, RoHS, UL

ABB 5SHY35L4503 Thyristor ABB High Power Semiconductor Industrial is a high-reliability power semiconductor module engineered for megawatt-scale power conversion. Serving as the core switching element in medium-voltage drives, inverters and rectifiers, it combines thyristor-like conduction performance with transistor-like switching speed, delivering precise energy control with minimal losses in demanding industrial applications. The rugged press-pack construction with double-sided cooling ensures superior thermal stability, allowing dependable operation under continuous heavy load and high ambient temperatures. Advanced gate-commutated turn-off technology enables snubberless operation, simplifying system design and improving overall reliability. The ABB 5SHY35L4503 conforms to rigorous industrial standards, making it a preferred building block for high-voltage, high-current power conversion systems.
