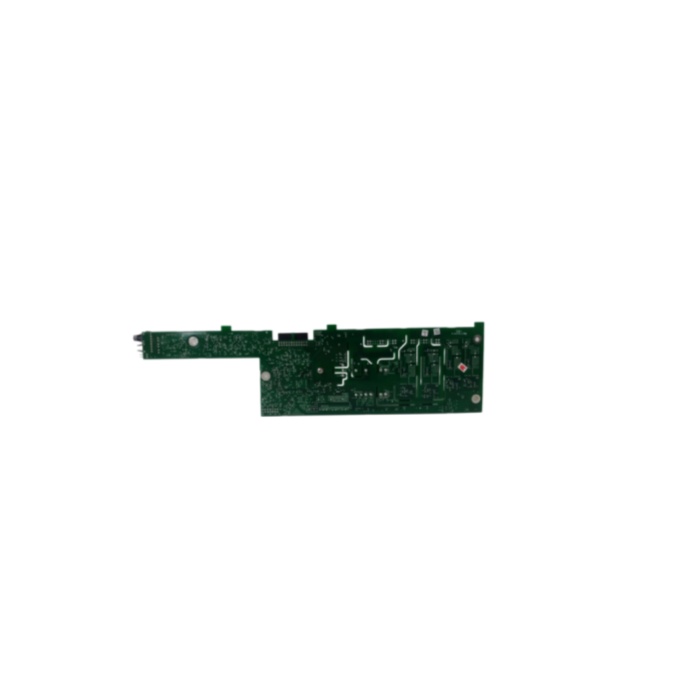

ABB GDD471A001 ABB Drive Module 12 Months Warranty Original

The ABB GDD471A001 ABB Drive Module 12 Months Warranty Original is a high-performance gate drive module built for high-power industrial drive systems. Operating as the link between the drive control electronics and power semiconductors, it converts low-voltage control commands into precisely timed, galvanically isolated gate pulses, guaranteeing fast, stable switching of IGBT/IGCT power stages under demanding site conditions.

Key Specifications:

Brand：ABB

Model：GDD471A001

Type：Gate Drive Unit for High Power Industrial Drives

Supply Voltage：24 V DC (±20%, from power cell supply)

Control Signal：High-speed gate drive output for IGBT/IGCT power switches

Communication Interface：Optical fiber interface (6-channel TX/RX, HFBR type) for commands and status feedback

Protection Features：Over-current and short-circuit protection, desaturation detection, fault monitoring

Input Signal Levels：Logic "1" ≥ 15 V DC; logic "0" ≤ 5 V DC

Operating Temperature：-20°C to +60°C

Humidity Range：5% to 95% non-condensing

Certifications：CE, RoHS, UL

The ABB GDD471A001 gate drive unit pairs precision gate control with rugged industrial construction. Serving as the critical interface inside medium- and high-voltage drive power cells, it delivers clean, isolated switching signals through fiber-optic links, keeping performance stable even in electrically noisy and high-temperature surroundings. Comprehensive fault detection protects the power stage against abnormal conditions, while the compact, robust design simplifies integration, extends equipment life and reduces maintenance downtime. The ABB GDD471A001 complies with strict industrial standards, making it a trusted gate drive choice for demanding high-power industrial applications.
