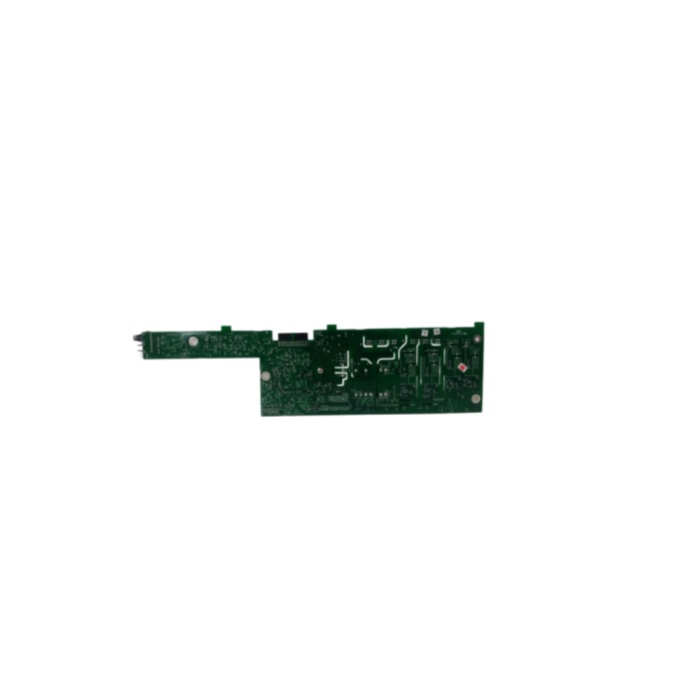

ABB GDD471A001 Gate Drive Module Fast Delivery Global In Stock
ABB GDD471A001 Gate Drive Module Fast Delivery Global In Stock
- Number:
- GDD471A001
- Product Orgin:
- 瑞士
- Warranty:
- 一年
- Inventory Quantity:
- 12
- Shipping Port:
- 厦门
- Payment:
ABB GDD471A001 Gate Drive Module Fast Delivery Global In Stock
The ABB GDD471A001 Gate Drive Module Fast Delivery Global In Stock is a high-performance gate drive module built for high-power industrial drive systems. Operating as the link between the drive control electronics and power semiconductors, it converts low-voltage control commands into precisely timed, galvanically isolated gate pulses, guaranteeing fast, stable switching of IGBT/IGCT power stages under demanding site conditions.
Key Specifications:
Brand：ABB
Model：GDD471A001
Type：Gate Drive Unit for High Power Industrial Drives
Supply Voltage：24 V DC (±20%, from power cell supply)
Control Signal：High-speed gate drive output for IGBT/IGCT power switches
Communication Interface：Optical fiber interface (6-channel TX/RX, HFBR type) for commands and status feedback
Protection Features：Over-current and short-circuit protection, desaturation detection, fault monitoring
Input Signal Levels：Logic "1" ≥ 15 V DC; logic "0" ≤ 5 V DC
Operating Temperature：-20°C to +60°C
Humidity Range：5% to 95% non-condensing
Certifications：CE, RoHS, UL
